Mark IV Heavy Tank

Last updated on March 9th, 2019 at 08:48 pm

The Mark IV heavy tank was designed in October 1916 and produced between March and April 1917.

{avsplayer videoid=3 playerid=1}

The first time the Mark IV saw action was at the Battle of Messines Ridge on June 7, 1917.

However, the Mark IV heavy tank is most famous for its performance at the Battle of Cambrai, which took place on November 20, 1917. Of the more than 400 tanks that took part in the battle, many were Mark IVs.

The silhouette of the Mark IV heavy tank can be found on the cap and arm badge of the UK’s Royal Tank Regiment, which observes November 20 as Regimental Day.

The Mark IV featured a number of improvements over the Mark III heavy tank.

In the Mark III, the gas tank was located inside the tank. In the Mark IV, the gas tank, which held 60 gallons of gasoline, was moved to the outside the tank between the rear horns. This created a much safer environment for the tank crew.

Mark IV Heavy TankThe sponsons on the Mark IV had hinges so that the sponsons could be swung inward if the tank was transported by rail.  In earlier heavy tanks, the sponsons had to be removed for rail journeys.  The Mark IV’s sponsons were also reduced in size, so that their lower edges were further from the ground.

In the earliest models of the Mark IV, the Vickers and Hotchkiss machine guns were replaced by Lewis machine guns. However, the Lewis machine guns proved unsatisfactory, so modified Hotchkiss machine guns replaced the Lewis guns.

The Mark IV used thicker steel than the Mark III. This thicker steel protected the Mark IV against German anti-tank rifles.  The armor on the Mark IV was 0.47 inches (12mm) thick at the front and sides of the tank, and 0.315 inches (mm) around the rest of the tank.

Mark IV Heavt Tank at Battle of Cambrai 1917

Of the 1,220 Mark IVs that were built, 205 were tank tenders. These were used for carrying supplies into battle. They had square sponsons that resembled boxes. The tank tenders had specially boosted Daimler engines that generated 125 horsepower.

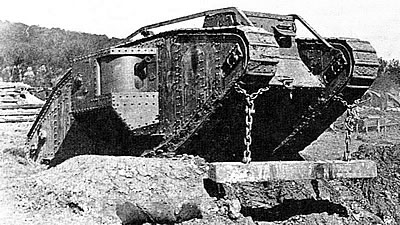

Mark IV Heavy Tank climbing out of a WWI trench
Mark IV Heavy Tank

Many of the tank crews that fought at Cambrai were trained by the Royal Naval Gunnery Training Establishment at Whale Island, Portsmouth. In a gesture of appreciation, Mark IV Heavy Tank No. 3424 was given to the shore establishment HMS Excellent at Whale Island.

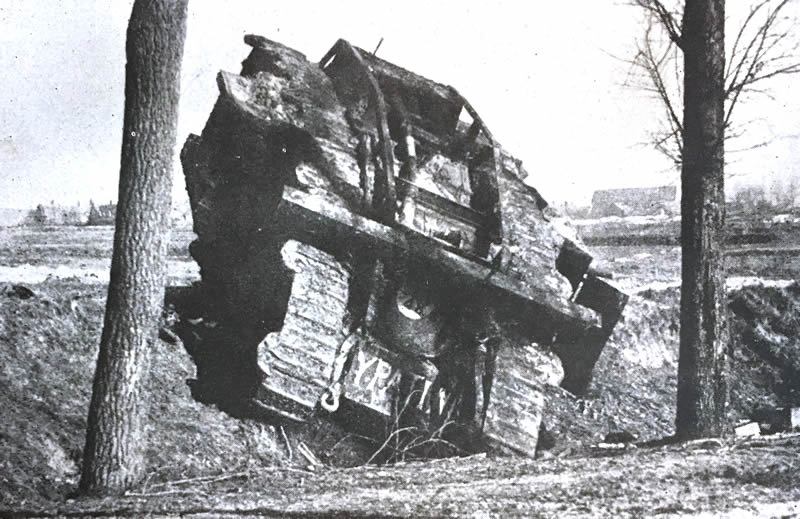

Mark IV Heavt Tank traversing ditch at Battle of Cambrai 1917

Twenty years later, the tank was restored to full working condition and assigned to a Royal Navy battalion that defended Portsmouth during World War II.   It was taken out of service after it damaged a private car.

From 1969 to 1971, 18 Command Workshop of the Royal Electrical and Mechanical Engineers (REME) at Bovington, in Dorset, worked on restoring Tank No. 3424 until it was fully operational once again. The tank now resides at the Tank Museum in Bovington.

Great Britain

Mark IV Heavy Tank (Male)

Active: 1917
Crew: 8
Weight: 28 tons (28,450kg)
Length: 26ft 4in (8.03m)
Height: 8ft 2in(2.49m)
Width: 12ft 10in (3.91m)
Weapons: Main – 2 x 6 pounder 2.24 in (57mm) guns, Secondary – 4 x 0.303in (7.7mm) Lewis machineguns
Armor Maximum – 0.47in (12mm)
Engine: Daimler 6-cylinder gasoline, developing 100hp
Speed: 3.7 mph (6 kph)
Range: 25 miles (40 km)
